ONYX 2 Sport

Data Acquisition – ONYX 2 Sport
Our Onyx 2 Sport Data Acquisition / Laptimer System:

• It’s a 3-in-1 device that integrates a 25Hz GNSS engine, a 6-axis IMU, and an expandable SD memory module.

• Features a CNC-machined anodized aluminum case, motorsport-grade quality.

• Perfect to be used as a standalone data logger.

• Includes a 3-axis accelerometer to measure lateral, longitudinal, and vertical acceleration, and a 3-axis gyroscope to detect pitch, roll, and yaw rotations (X, Y, Z axes).

• Supports FAT32-formatted SD cards, with capacities up to 2 TB.

• Our ONYX data logger connects directly to the car battery.

• Generates a universal .vbo file. You can use the .vbo with compatible software like: VBOX Test Suite (recommended for drag racing), VBOX Circuit Tools (ideal for track use), RaceChrono, and others! All are very intuitive and provide a wealth of information to help you optimize performance.

Product weight (without packaging): 181g
Product weight (with packaging): 478g

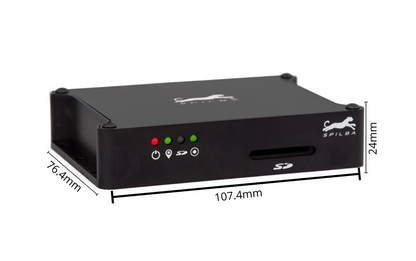

Device dimensions: 107.4 x 76.4 x 24 mm

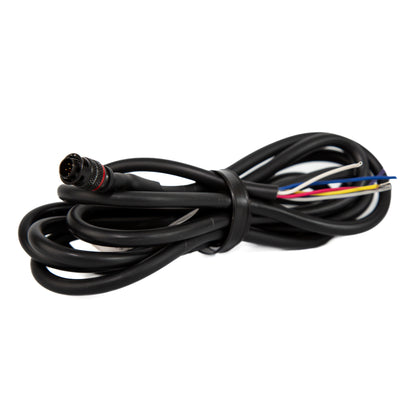

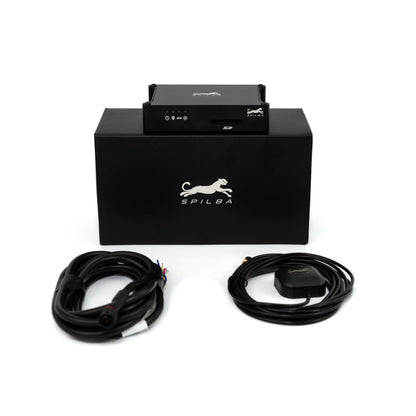

The Onyx data logger includes its GNSS antenna, power wiring, and installation manual.

INSTALLATION IS QUICK AND EASY, AND CAN BE DONE BY YOURSELF.
ALL OUR PRODUCTS INCLUDE A QUICK INSTALLATION GUIDE.
