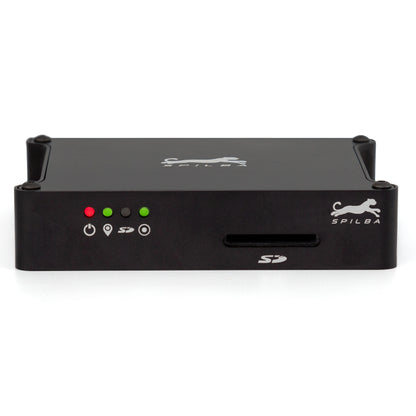

A 3-in-1 system with CAN BUS, integrating a 25Hz GNSS engine, 6-axis IMU, and expandable SD memory module.
Features a CNC-machined anodized aluminum enclosure, motorsport-grade quality.
Can be used as a standalone data logger or as an expansion for another system via CAN BUS.
Includes a 3-axis accelerometer to measure lateral, longitudinal, and vertical acceleration, as well as a 3-axis gyroscope to track pitch, roll, and yaw rotations.
Supports FAT32-formatted storage up to 2TB.
Connects directly to the vehicle's battery.
Generates a universal .vbo file compatible with software such as:
VBOX Test Suite (recommended for drag racing)
VBOX Circuit Tools (recommended for track racing)
RaceChrono, among others!
These applications provide extensive data for performance optimization.
Product Weight:
Without packaging: 181g
With packaging: 478g
Dimensions: 107.4 x 76.4 x 24mm

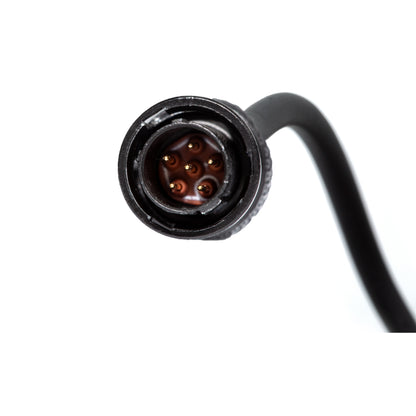

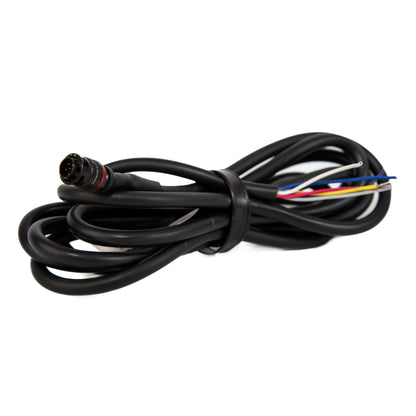

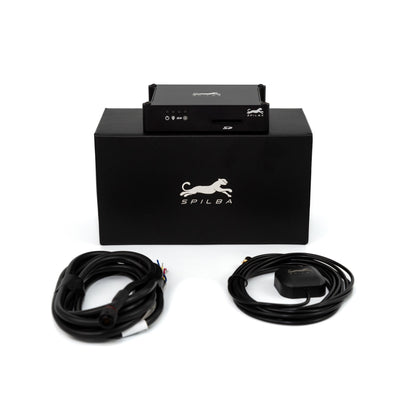

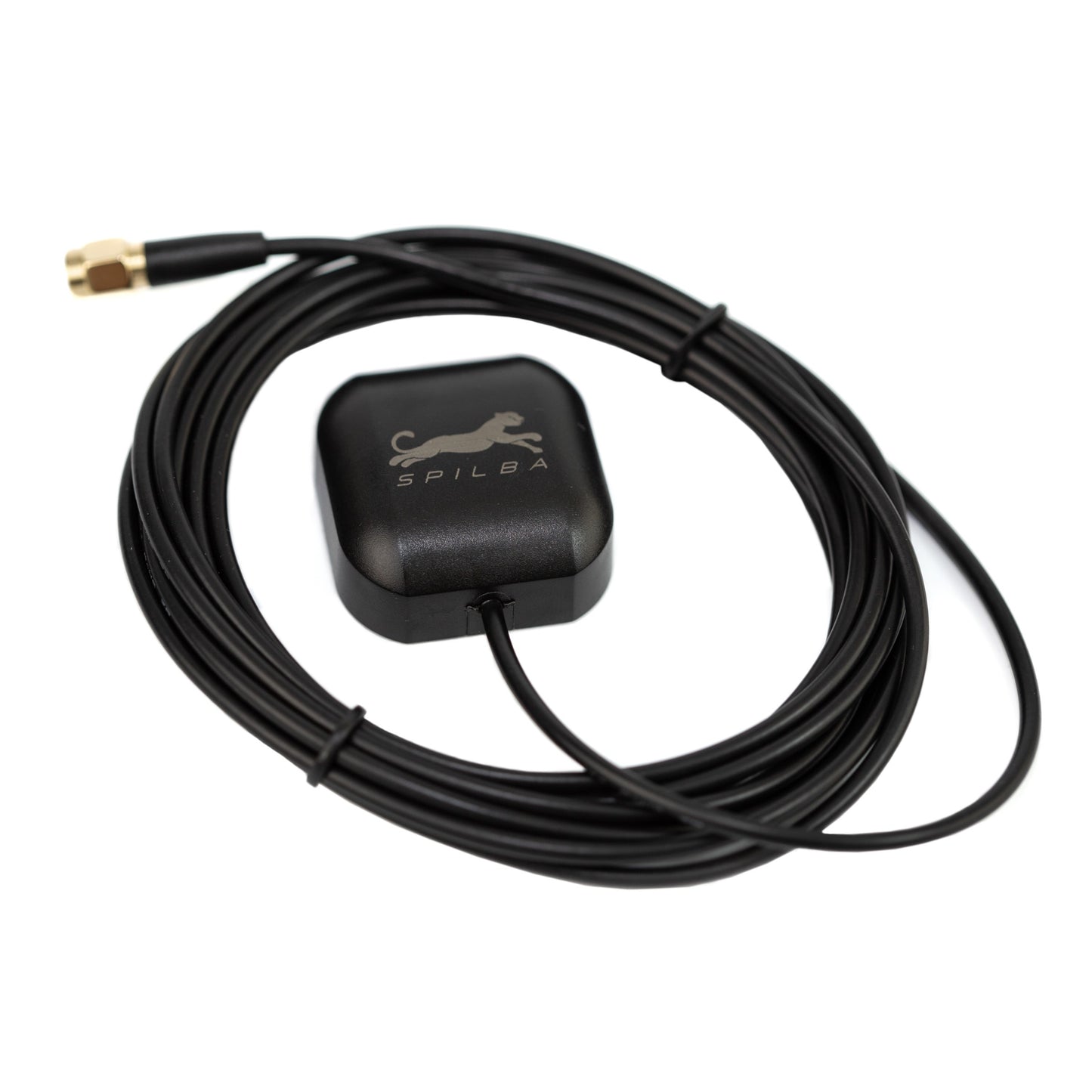

The Onyx data acquisition system includes a GNSS antenna, power wiring, and an installation manual.
INSTALLATION IS QUICK AND EASY—YOU CAN DO IT YOURSELF! ALL OUR PRODUCTS INCLUDE A QUICK INSTALLATION GUIDE.
