GNSS Antenna

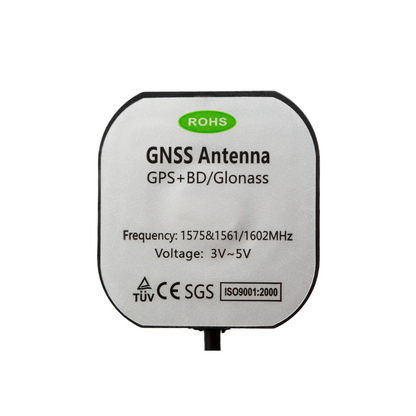

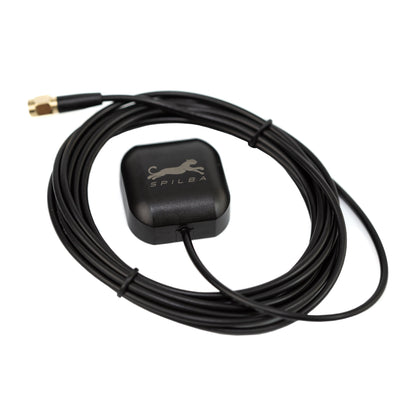

GNSS Antenna (GPS & GLONASS)

Description:
High-performance GNSS antenna designed to receive signals from both GPS and GLONASS systems. Ideal for motorsport, automotive testing, and data logging applications requiring precise location and speed data.

Technical Specifications:

• Frequencies:

  • 1575 MHz (GPS)

  • 1602 MHz (GLONASS)

• Total Gain with LNA:

  • 26 ± 3 dBic @ Zenith @ 1575.42 MHz

  • 27 ± 3 dBic @ Zenith @ 1602 MHz

• Output Impedance:

  • Nominal: 50 Ω

  • 66.52 + j3.85 Ω @ 1575 MHz

  • 46.77 + j0.98 Ω @ 1602 MHz

• Polarization:

  • Right-hand circular

• VSWR:

  • Maximum 2.6 dB

• Mounting:

  • Magnetic base

• Ingress Protection:

  • IP67 (dust-tight and waterproof)

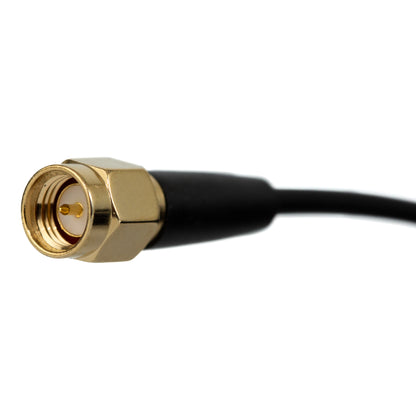

• Connector Type:

  • SMA (26 GHz bandwidth)

• Operating Temperature:

  • -40°C to +85°C

• Product Weight:

  • 68 g

Reliable, rugged, and accurate — ideal for on-vehicle GNSS signal reception in demanding environments.
